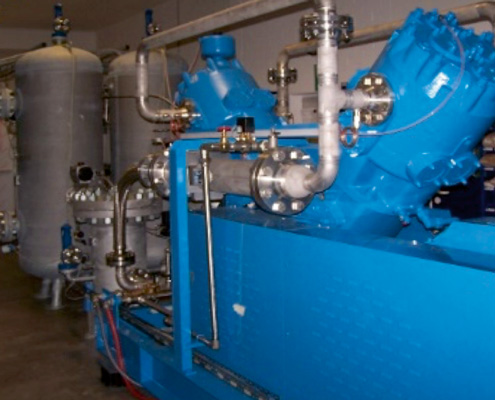

High pressure flow test bench for component development
Function testing, flow measurements and endurance tests of pneumatic high-pressure components such as high-pressure filters and pressure regulators in dynamic load ranges.
Test medium
Compressed air
Pressure range
15bar to 42bar

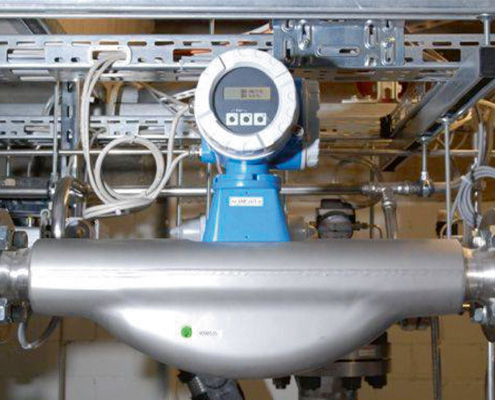

Mass flow rate
400kg/h to 7000kg/h
Special features
Dynamic inlet pressure, differential pressure and mass flow control

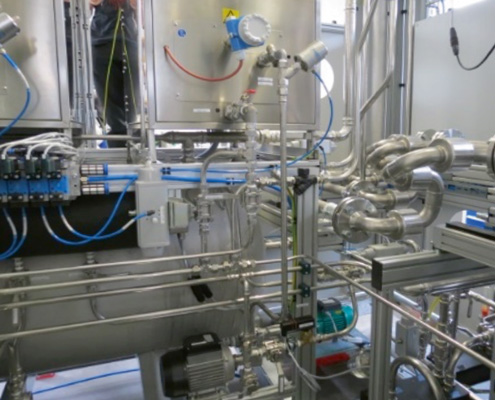

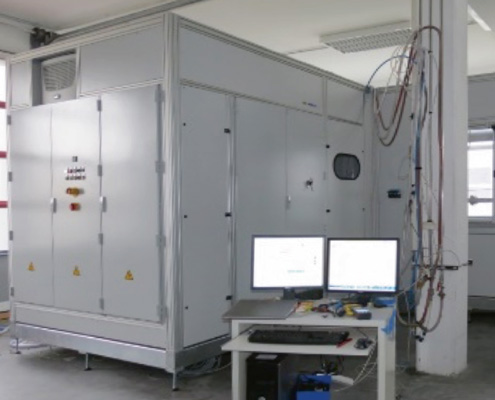

Test bench for process valves with SIP media
With this testing system, the closing and opening behaviour of three valves can be tested simultaneously. In this endurance test bench, tests are carried out on the service life of different media valves using a cyclic change of test media (steam / water) including (deliberately) resulting steam and water-based hydraulic shock (water hammer).
Test media
Process steam, ultra-pure water
Special features
Process steam 330kg/h, 9bar
ultra-pure water 30m³/h, 28bar
Cyclical change of process steam and water

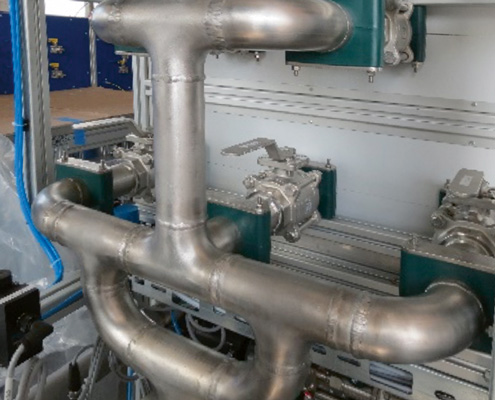

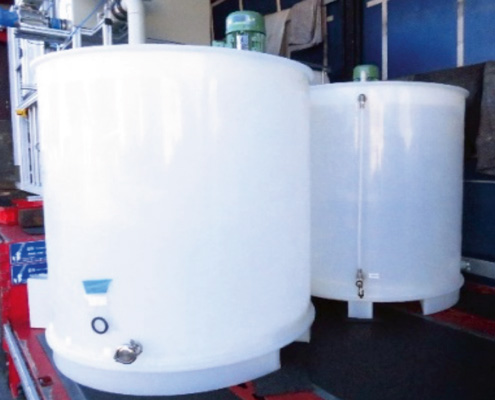

Test bench for process valves with CIP media
With this test bench up to three valves or other components can be tested regarding the penetration behaviour of process media in media-separating constructions. The resulting flushability with flushing medium can then also be tested.
Test media
Common CIP media, ultra-pure water
Special features
Test bench for testing the media compatibility and purge capability of process valves

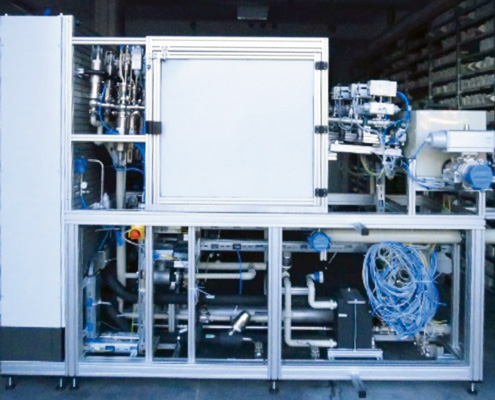

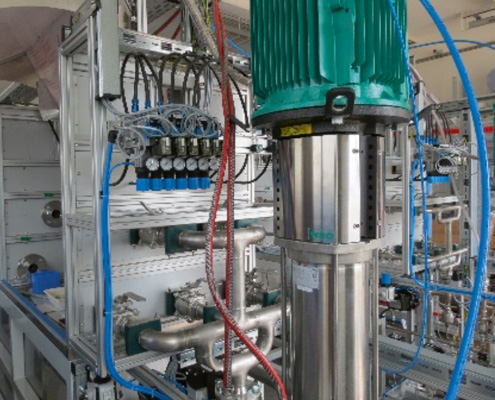

Endurance test bench with water
In the two test systems, the closing and opening behaviours of up to eleven valves can be tested under operational conditions. Among other things, hydraulic shock (water hammer) is introduced in different cycles in order to test the process valves until the component fails.
Test medium
Water
Temperature range
up to +60°C
Volume flow
per valve: 18m³/h at 25bar or 55m³/h at 16bar
Special features
Two testing systems with a total of 11 test object connections

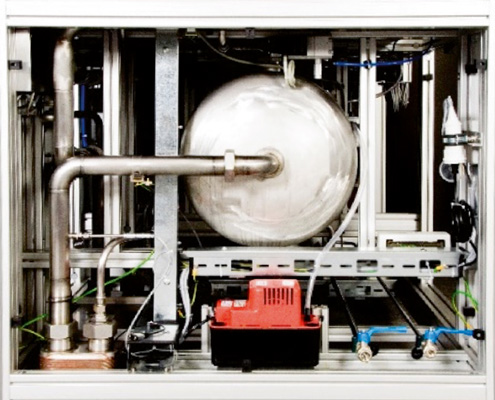

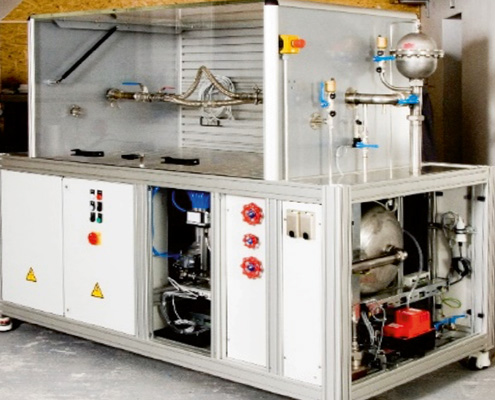

Testing system for water valves
This development test bench is used for leakage and functional testing as well as determining the characteristics of water valves under operational conditions.
Test medium
Water
200l/min and 3bar

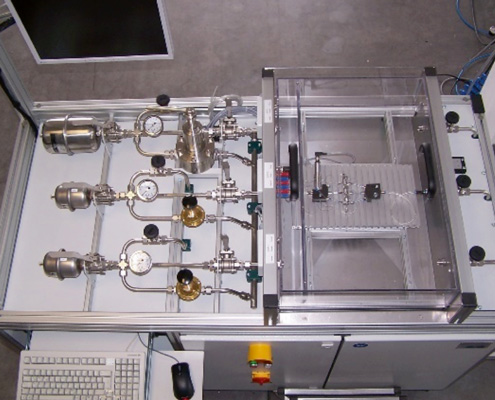

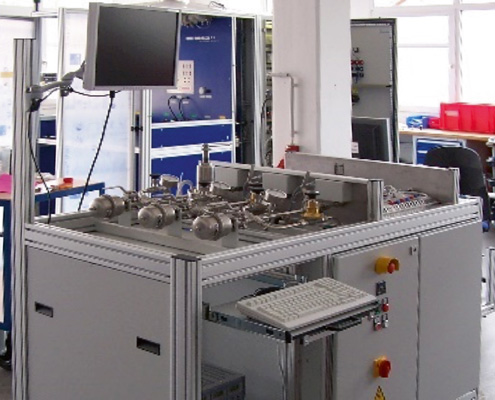

Testing system for small media valves
This test bench was developed for functional and endurance testing as well as for determining water valve characteristics.
Test medium
Water
Special features
Maximum total flow 16l/min and 7bar
