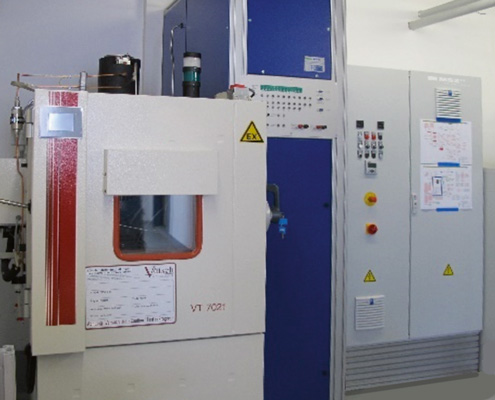

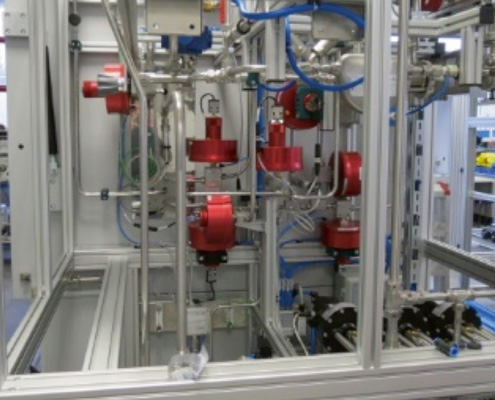

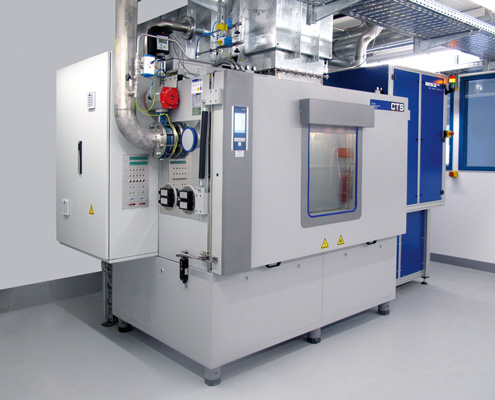

Development test bench for
H2 tank system components
Test bench for the development and validation of high-pressure components. This includes tank nozzles, containers, pressure regulators, shut-off and check valves as well as low-pressure shut-off valves for the hydrogen supply. Measurements are fully automated with temperature-controlled media in a conditioned environment using extensive, in-depth safety technology.
Test medium
Hydrogen
Temperature range
-50°C to +150°C environment
-45°C to +130°C test medium
Pressure range
10bar to 1000bar
Mass flow rate
0 – 2000Nm³/h
Special features
Temperature chamber inerted with a large burst disc
“Fastfill” replication
Dynamic pressure and mass flow control, pressure pulses
Integrated leakage measurement technology for H2

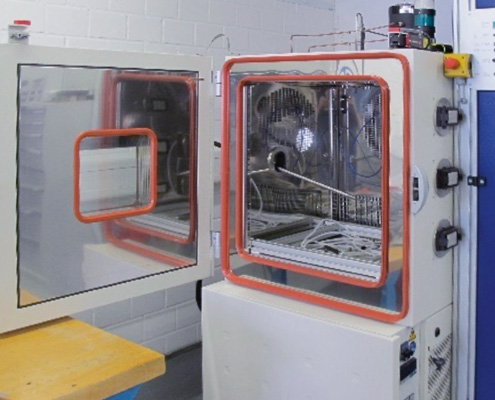

Test bench for
H2 tank system components
Leakage and functional testing of tank system components such as valves, lines and pressure regulators under temperature-controlled ambient conditions. Locating the leak in the inertised and tempered chamber is possible while the experiment is being conducted.
Test medium
Hydrogen
Temperature range
-50°C to +120°C
Special features
Leakage and function measurements
Hydrogen up to 1,050bar
Incoming goods inspections
Integrated leak detection

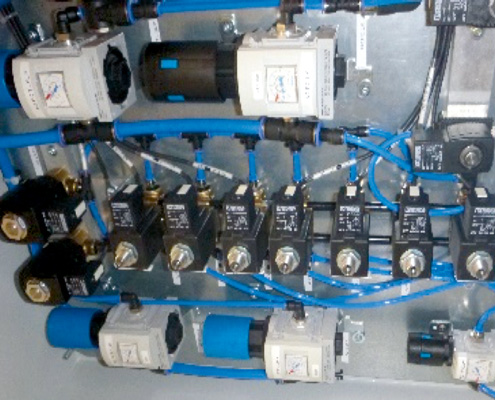

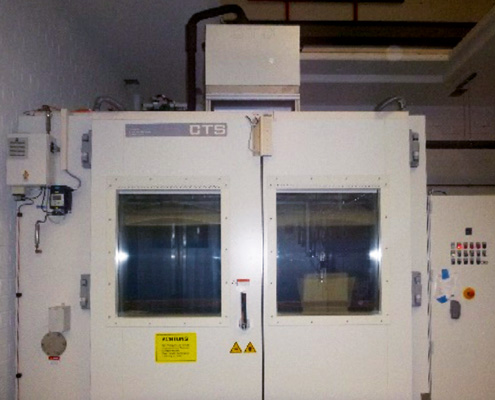

Test bench for high pressure hydrogen tank systems
It is possible to carry out online leak detection during testing by measuring the hydrogen concentration present in the climatic chamber.
Test media
Hydrogen
Hydrogen conditioned according to SAE refueling regulations
Temperature range
-50°C to +90°C ambient conditions
Pressure range
Maximum operating pressure 700bar, maximum filling pressure 800bar
Special features
Integrated test bench for the cycling of complete vehicle tank systems under climatic ambient conditions. Integrated leak detection

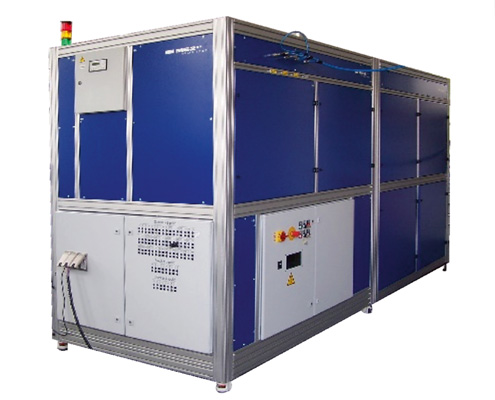

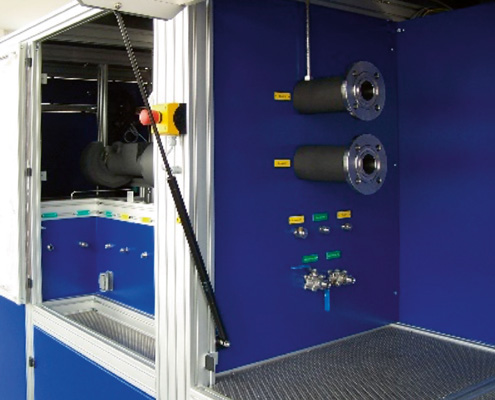

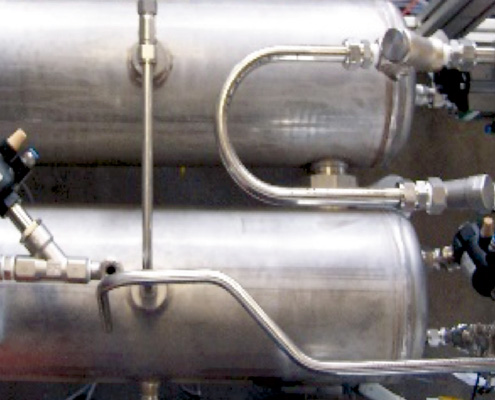

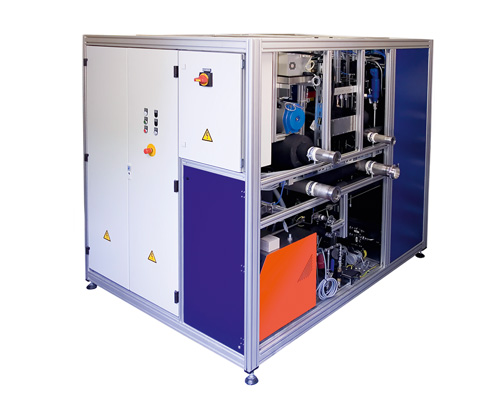

Dynamic test bench for membrane humidifiers with climatic chamber
In this system, the testing of humidifier modules and separators also takes place in combination with a charge air cooler in dynamic and stationary operation. The process takes place at different media temperatures and pressures as well as at variable ambient temperatures.
Test media
Compressed air, ultra-pure water
Temperature range
-40°C to +95°C environment
Mass flow rate
110kg/h steam, 450kg/h air
Special features
Dynamic humidity, pressure and mass flow control
Dynamics under 1 sec (Tau 90)
Test bench for functional testing of anode loop modules
Component testing system for functional testing of anode loop modules and H2 metering valves, H2 recirculation fan, jet pump with or without metering valve and water separator.
Test media
Hydrogen, nitrogen
Temperature range
-25°C to +100°C environment
Special features
Gravimetric determination of condensate quantities
Dynamic adjustment of gas mixtures and moisture

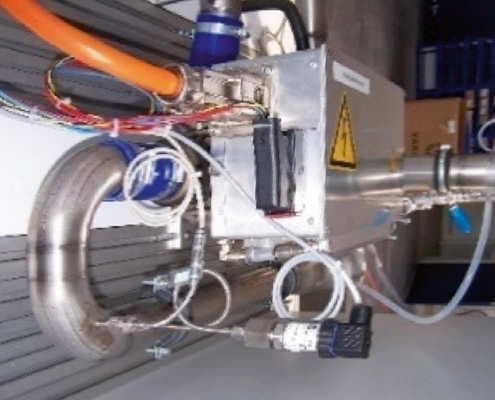

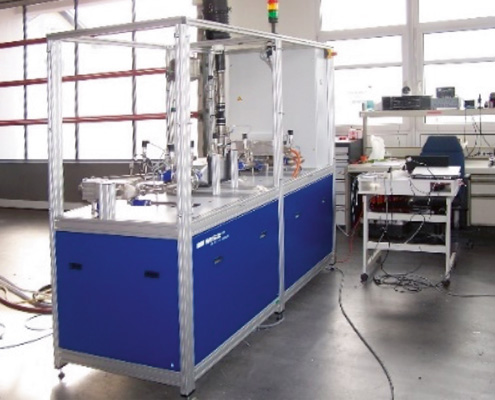

Test bench for fuel cell system air supply modules
Development and service life study of compressors for the air supply in fuel cell systems. The compressor is attached to the test bench and draws in air from the test room environment via an intake silencer. This air is compressed, humidified and released again in an expander. Air conditioning is an available option.
Test medium
Air
Special features
High-voltage power supply for the test item
Drip impact simulation
Operation with humid gases possible
Structure-borne sound / vibration analysis of the test item
